Paint Mixing Room
MT-PMR 624
BRAND NEW PAINT MIXING ROOM MADE IN THE USA
DESCRIPTION:
Paint Mixing Rooms are perfect for paint mixing and matching. All mixing rooms are well lit and ventilated providing a safe environment for the painter.
BOOTH CONSTRUCTION:
All of our booths are made with premium 18 ga. Zinc galvanized steel panels, companion flanged and pre-punched at 6" on center for easy assembly with 1/4" nuts and bolts.
OPTIONAL (ADD-ON ITEMS):
Description
Only $6,699.00
INCLUDED:
Paint Mixing Room Model MT-PMR 624

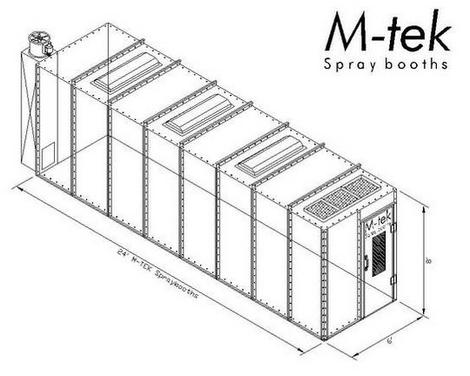

Dimension 6'-4"Wide X 15'-4"Deep X 8'-2"High
- (1) 12" Dia. Tubeaxial Exhaust Fan Belt drive CFM's @ .250" SP=1561
- (1) 1/3hp 1ph motor 115/230V. 50/60 hz
- (1) Access Man door
- (3) 4 Tube fluorescent T8 light fixture 120v. (bulbs not included)
- (1) Exhaust Plenum with ventilation opening.
- (3) Intake filter pads.
- (1) Hardware set for assembly
- (1) Installation exploded view drawings booth elevations and specifications.
- All components are UL approved
- Powder coating ultra white inside and out. Recommended for premium inside illumination and booth panels protection from corrosion and outside elements.
- Pre-fab Electrical control Kit
- Observation Windows On Entry Doors.
- 12" Dia. 9 Ft. Exhaust Duct Kit, 2 plain duct pieces, ring connector to fan, rain guards, counter flashing and vertical damper cap.
- Interlock Combo Kit
- Fire Suppression System
All Paint Booths Are Manufactured Per NFPA, UFC, NEC And OSHA Requirements.
MT-PMR 69 6'-4" X 9'-4" X 8'-2" 12" 1/3hp 1ph 1
Model Dimension O.D. Fan/Motor Lights
Width x Length x height
MT-PMR 612 6'-4" X 12'-4" X 8'-2" 12" 1/3hp 1ph 2
MT-PMR 615 6'-4" X 15'-4" X 8'-2" 12" 1/3hp 1ph 2
MT-PMR 624 6'-4" X 24'-4" X 8'-2" 12" 1/3hp 1ph 3
