Open Face Spray booth
MT-OF 1598
BRAND NEW OPEN FACE SPRAY BOOTH MADE IN THE USA
DESCRIPTION:
Open Face Spray booths are perfect for woodworking and industrial finishing, providing a safe environment for the painter.
BOOTH CONSTRUCTION:
All of our booths are made with premium 18 ga. Zinc galvanized steel panels, companion flanged and pre-punched at 6" on center for easy assembly with 1/4" nuts and bolts.
OPTIONAL (ADD-ON ITEMS):
Description
Only $7,399.00
- Powder coating ultra white inside and out. Recommended for premium inside illumination and booth panels protection from corrosion and outside elements.
- Pre-fab Electrical control Kit
- 1 Phase Upgrade
- Observation Windows On Entry Doors.
- 30" Dia. 9 Ft. Exhaust Duct Kit, 2 plain duct pieces, ring connector to fan, rain guards, counter flashing and vertical damper cap.
- Interlock Combo Kit
- Fire Suppression System
All Paint Booths Are Manufactured Per NFPA, UFC, NEC And OSHA Requirements.
Model Dimension O.D. Fan/Motor Lights
Width x Length x Height
INCLUDED:
Paint Spray booth Model MT-OF 1598.

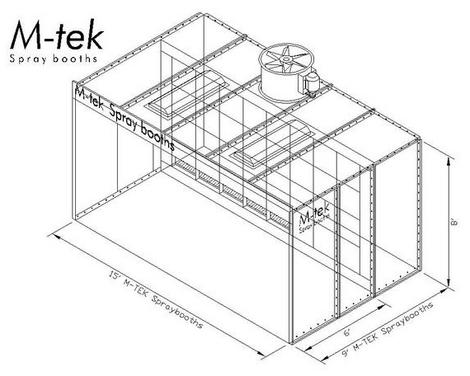

Outside Dim. 15'-4"Wide X 9'-4"Deep X 8'-2"High
Inside Dim. 15'Wide X 6'Deep X 8'High
- (2) 4 Tube fluorescent T8 light fixtures 120v. (bulbs not included)
- (1) 30" Dia. Tubeaxial belt drive exhaust fan CFM's @ .250" SP=13,180
- (1) 3hp 3ph motor 208-230/460V. 60 hz
- (1) Mark dywer manometer kit defines air flow pressure
- (32) exhaust filters w/ (64) exhaust filter grids
- (1) Hardware set for assembly; nuts & bolts, screws.
- (1) Installation exploded view drawings booth elevations and specifications.
- All components are UL approved.
MT-OF 1568
MT-OF 1598
MT-OF 15128
MT-OF 15610
MT-OF 15910
MT-OF 151210
15'-4"' X 6'-4" X 8'-2"
15'-4" X 9'-4" X 8'-2"
15'-4" X 12'-4" X 8'-2"
15'-4" X 6'-4" X 10'-2"
15'-4" X 9'-4" X 10'-2"
15'-4" X 12'-4" X 10'-2"
30" 3hp 3ph
30" 3hp 3ph
30" 3hp 3ph
30" 5hp 3ph
30" 5hp 3ph
30" 5hp 3ph
N/A
2
2
N/A
2
2
