Semi-Down Dual Prep-Station

MT-PS 200

BRAND NEW SEMI-DOWN DRAFT DUAL PREP-STATION MADE IN THE USA

AIR FLOW DESCRIPTION:

Fresh air enters the booth through the top intake plenum and travels across the cabin evenly into the rear centered exhaust plenum providing a safe environment and a supreme air flow for a great paint job.

BOOTH CONSTRUCTION:

All of our booths are made with premium 18 ga. Zinc galvanized steel panels, companion flanged and pre-punched at 6" on center for easy assembly with 1/4" nuts and bolts.

OPTIONAL (ADD-ON ITEMS):

Description

Only $22,999.00

INCLUDED:

Prep-Station Model MT-PS 200.

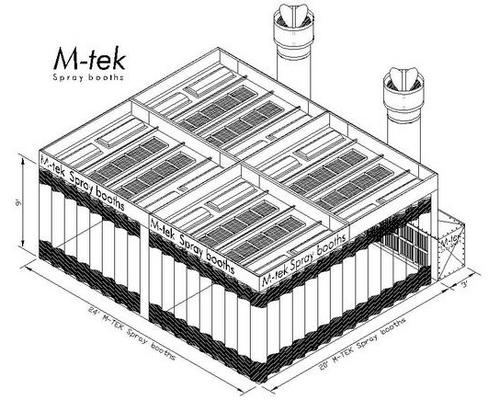

Outside dim. 24'-4"Wide x 23'-4"Long x 11'-2"High

Inside dim. (2) 12'Wide x 20'Long work bays

(4) Sided Heavy duty clear vinyl and durable 'Rip-Stop' vinyl to provide excellent longevity in service. Three-color curtain with a "See-thru" clear vinyl center section.

(16) 4 Tube fluorescent T8 light fixtures 120v. (bulbs not included)

(2) 30" Dia. Tubeaxial belt drive exhaust fan CFM's @ .250" SP=13,180 x2 = 26,360

(2) 3hp 3ph motor 208-230/460v. 60 hz

(2) Mark dywer manometer kit defines air flow pressure

(24) Exhaust filters w/ (24) exhaust filter grids

(40) Intake filter pads

(1)Hardware set for assembly; nuts & bolts and screws

(1) Installation exploded view drawings booth elevations and specifications.

All components are UL approved

Powder coating ultra white inside and out. Recommended for premium inside illumination and booth panels protection from corrosion and outside elements.
